Product Detail

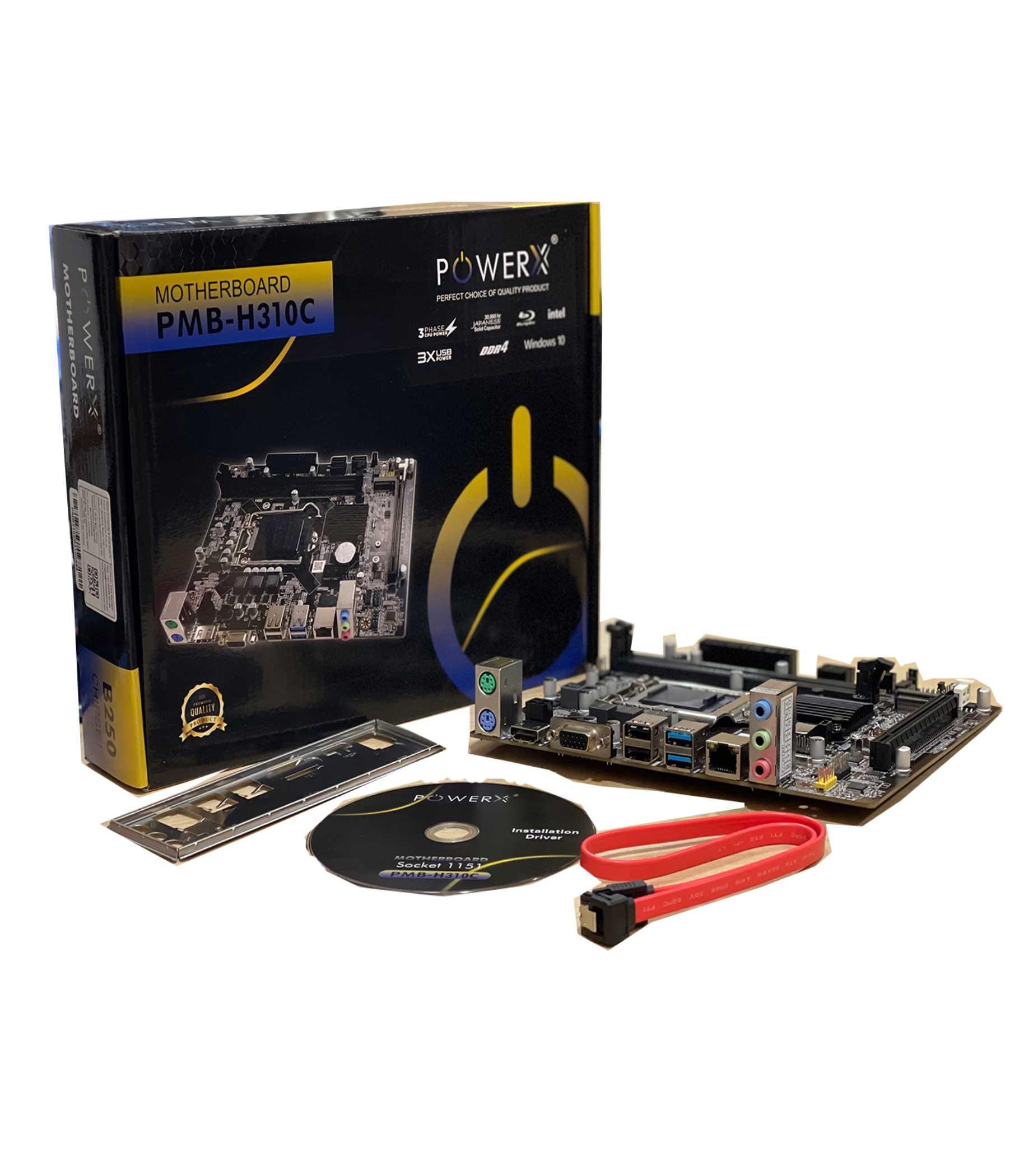

MODEL Power-X H310 DDR4
CPU Support LGA 1151 Socket 13/15/17 series CPU
Chipset Intel H310C/B250 Chipset
Memory 2*288-pin DDR4 slots
Memory up to 32GB
Support dual-channel DDR4 2133/2400/2666 MHz memory
BIOS EFI BIOS
DRIVERS .
I/O Interface 1 x PS/2 port
1 x VGA port
1 x HDMI port
2 x USB 2.0, compatible with USB 1.1
2 x USB 3.0 port
1 x RJ45 port
1 x Audio port (Line In / Line Out / MIC In)


MODEL Power-X H310 DDR4
Onboard Interface 1 x 24-pin ATX power connector
1 x 4-pin ATX 12V power connector
1 x USB connectors, can support 2*USB 2.0
1 x USB connectors, can support 2*USB 3.0
1 x F_AUDIO connector
1 x F_PANEL connector
1 x SPEAKER connector
2 x FAN connectors
3 x Serial ATA connection ports
Integrated Sound with 6-channel HD Audio Codec onboard
provides front audio interface; provides front stereo mic interface
Integrated LAN with 10/100/1000 Mbps LAN onboard (Optional)
Expansion Slot 1 x PCI Express x 16 slot
1 x M.2 slot
Dimension Micro-ATX (17*19.6cm)
