Product Detail

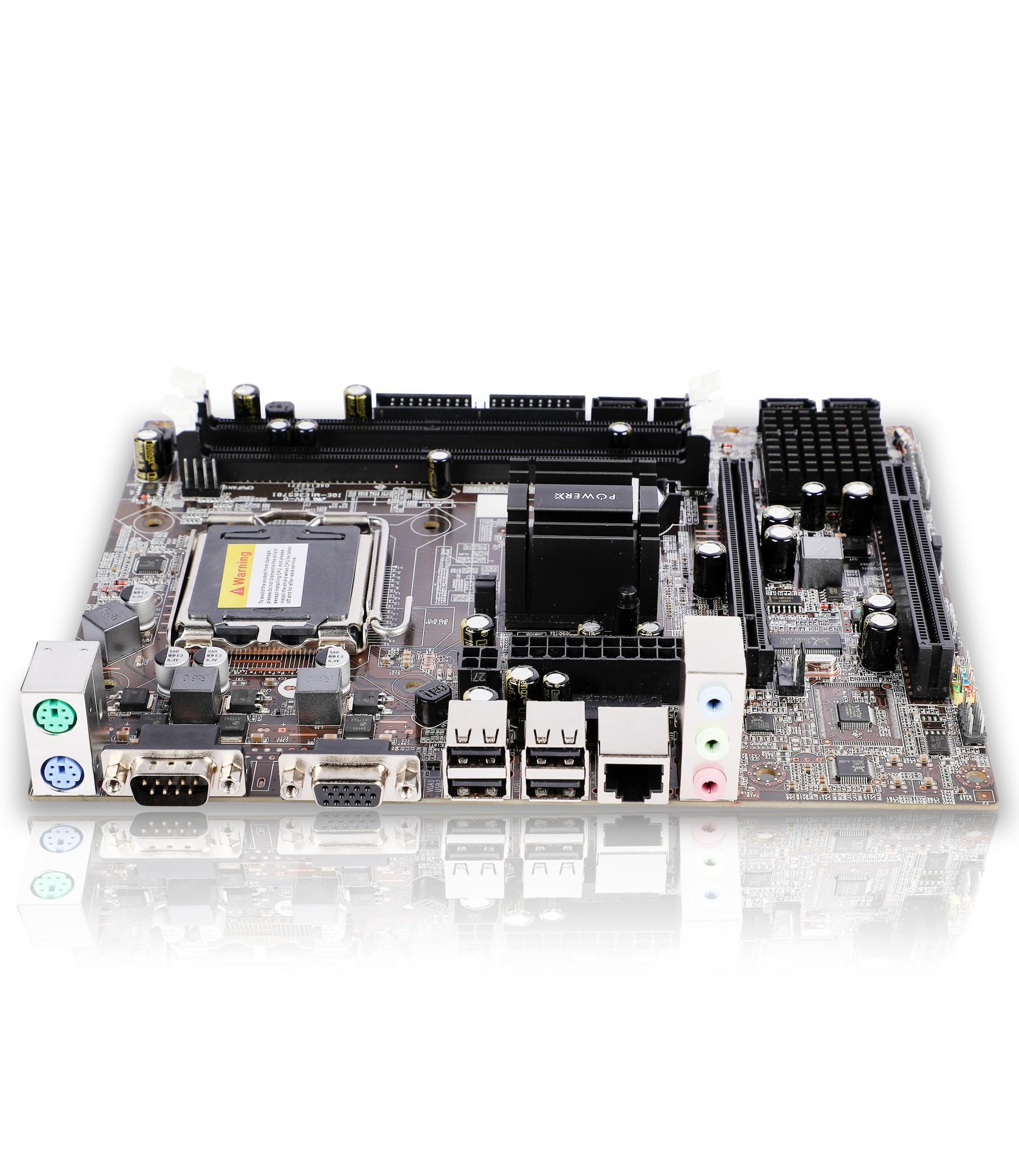

MODEL Power X Motherboard PMB-G31-DDR2
CPU LGA775 for Intel® Core™ 2 Extreme, Core™ 2 Quad, Core™ 2 Duo, Pentium® Dual Core, Pentium® D, Pentium® 4,
Chipset Intel 82G31 + 82801GB
Supports GMA3100 Graphics
Memory 2 x DDR II SDRAM Slots
Memory upto 4GB
Supports dual-channel DDR II 800MHz / 667MHz Memory
BIOS AMI Bios
I/O Interface 1 x PS/2 Keyboard port and 1 x PS/2 Mouse port
1 x COM, 1 x VGA, 4 x USB 2.0, Compatible with USB 1.1
1 x RJ45 port, 1 x 3-in-1 Audio Port (Line in / out / MIC In)
Onboard Interface 1 x 24-pin ATX Connector, 1 x 4-pin ATX 12V power connector
2 x USB Connectors, can support upto 4 x USB 2.0 , 1 x S/PDIF output connector
1 x F_AUDIO Connector, 1 x F_PANEL Connector, 1 x SPEAKER Connector
2 x FAN Connectors, 4 x Serial ATA Connection port, 1 x 40-pin IDE port


MODEL Power X Motherboard PMB-G31-DDR2
Integrated Sound With 6-channel HD Audio Codec onboard
Provides front audio interface; provides front stereo mic interface
Integrated LAN With 10/100 Mbps LAN onboard
Expansion Slot 1 x PCI Express x 16 slot, 1 PCI slot, conformed to PCI v2.3 specification
Dimension Mirco-ATX architecture (17 x 21 cm)
